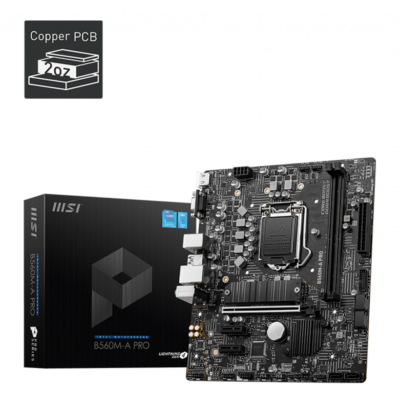

CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200 Please go to intel.com for compatibility information CHIPSET Intel® B560 chipset MEMORY 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. See supported memory EXPANSION SLOT 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chpiset) ONBOARD GRAPHICS 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz12 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. AUDIO Realtek® ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® 8125B 2.5Gbps LAN controller STORAGE 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. USB Intel® B560 Chipset 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) FORM FACTOR mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector BACK PANEL CONNECTORS HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A BOX CONTENT

CPU Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2 Please go to intel.com for compatibility information Onboard graphics output are disabled when using the F SKU processors. See supported processors CHIPSET Intel® B460 Chipset MEMORY 4x DDR4 memory slots, support up to 128GB 1 Intel® Core™ i7/i9 Support DDR4-2933 Memory (Max.) Intel® Core™ i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. See supported memory EXPANSION SLOT 1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) ONBOARD GRAPHICS 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30Hz, 2560×1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz STORAGE Intel® B460 Chipset 4x SATA 6Gb/s ports 1 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for the M2_2 slot only 2 Supports Intel® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. RAID Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB Intel® B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AUDIO Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® RTL8111H Gigabit LAN Controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector BACK PANEL PORTS PS/2 Combo Port Gigabit LAN USB 2.0 Ports DVI-D HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) HD Audio Connectors LED FEATURES 4x EZ Debug LED I/O CONTROLLER NUVOTON NCT6687 Controller Chip HARDWARE MONITOR CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control FORM FACTOR mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) BIOS FEATURES 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 Multi-language BOX CONTENT MSI® does not guarantee the risks or damages caused by changing the cover. These pictures are for reference only and may vary without notice.
